Stainless Steel Shims - Profile D - Shims - 125mm x 125mm - 0.05mm to 3.00mm
£28.67
In Stock | Ex-stock from our UK Midlands stores
High-quality Stainless Steel shim, designed for motors and pumps. Impact resistant and prevents corrosive attacks from acids or alkalis.
- Stainless Steel
- Burr-free with rounded corners
- Safety insertion tab
- Permanent thickness markings
Ex-stock from our UK Midlands stores
Flexible returns
Our pre-cut stainless steel shims ensure easy and accurate precision shaft alignment.
- Resistant to corrosive attacks from exposure to acids or alkalis.
- Permanently marked indicating thickness for quick identification.
- Flat and stable, ensuring consistent machine support over the entire shim surface.
- Burr-free with specially rounded corners to avoid injury to operatives.
- Extraction/insertion tab for easy positioning and removal.
Technical Specifications
Manufactured from high-quality impact resistant stainless steel, our pre-cut shims offer exceptional resistance to corrosion and acid. Each shim is processed to ensure it is burr-free with safe, rounded corners to prevent injury during handling. The thickness is permanently marked onto each shim for quick identification in the field.
Material Properties
Material Grade
Stainless Steel
Hardness
HV 150-180 (prevents soft foot)
Surface Finish
64 Ra or better
Tensile Strength
540-750 MPa
Yield Strength
min. 230 MPa
Temperature Range
-200°C to +300°C
Tolerance Class
T3 / T4

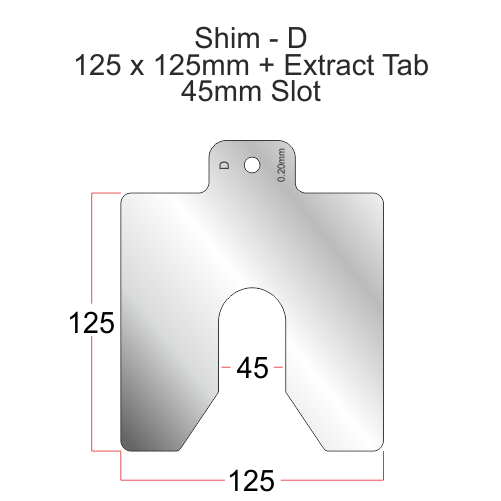

Profile Dimensions: Profile D
| Dimension | Value (mm) | Description |
|---|---|---|
| A | 125 | Total Width |
| B | 125 | Total Height |
| C | 45 | Slot Width |
